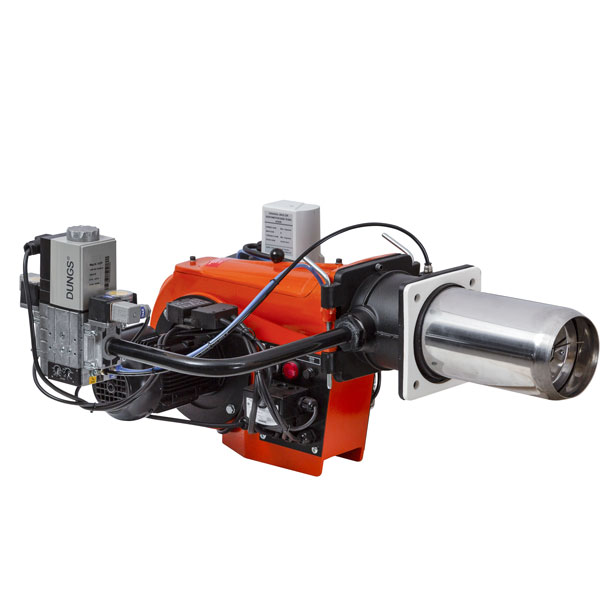

TG 30 Modulated Type Gas Burners Ability to operate harmoniously in different combustion chamber applications.
For delivery schedule and order, please contact our sales supervisor via our e-mail address
info@gokceburner.com.
| BURNER TYPE |
TG 30 |
| RELAY |
SIEMENS LME22 |
| FLAME DETECTOR |
IONIZATION ELECTRODE |
| FAN MOTOR |
550W, 220V, 2800 d/d |
| AIR PRESOSTAT |
DUNGS LGW 3A2 |
| TRANSFORMER |
2 X 10 kV |
| SERVOMOTOR |
SIEMENS SQN 70.624 |
| FAN |
180X62/12,7 |
| MULTIBLOK 21 mbar |
DUNGS MBC 300 - SIEMENS VGG10.254-SKP75-DUNGS MVD 510 - (FILTRE 1") |
| MULTIBLOK 300 mbar |
DUNGS MBC 300 - REGÜLATÖR (100-150 mbar) / SIEMENS VGD10.204-SKP75-DUNGS MVD 507/5 - (FILTRE 3/4") |
