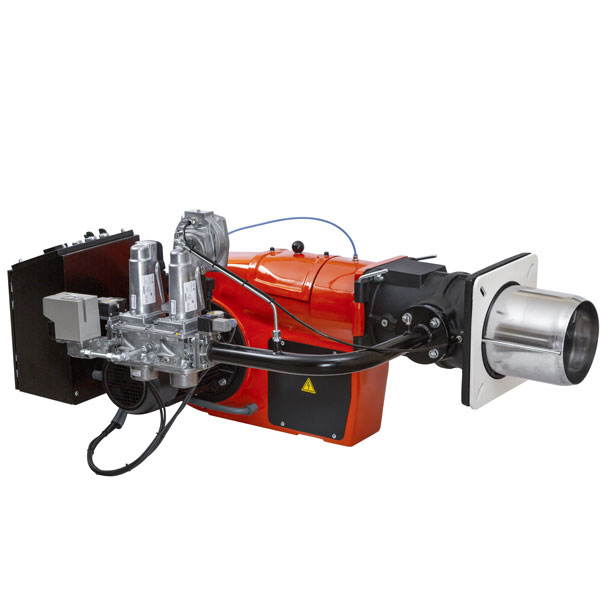

TG 250 AGP Modulated Gas Burners with its robust and strong body, it offers trouble-free operation for many years. Provides high efficiency in the most difficult conditions.
For delivery schedule and order, please contact our sales supervisor via our e-mail address
info@gokceburner.com.
| BURNER TYPE |
TG 250 AGP |
| RELAY |
SIEMENS LME 73 / LFL 1.333 |
| FLAME DETECTOR |
IONIZATION ELECTRODE |
| FAN MOTOR |
3 kW 2800 d/d, 380 V, 50 Hz |
| AIR PRESOSTAT |
DUNGS LGW 3A2 |
| ELECTRICAL PANEL |
CONNECTED TO THE BURNER |
| TRANSFORMER |
SEK. 2x5000V |
| SERVOMOTOR |
SIEMENS SQN 31.401 |
| FAN |
D= 280x92mm, d= 28mm |
| GAS PRESOSTAT (min) |
DUNGS GW 500 A5 |
| GAS PRESOSTAT (max) |
DUNGS GW 150 A6 |
| GAS LINE 21 mbar |
SIEMENS VGD 40.080 DN80 - SKP 75 - SKP 15 |
| GAS LINE 300 mbar |
SIEMENS VGD 20.4011 - SKP 75 - SKP 15 |
| FILTER |
1 1/2" - DN 80 |
| OPERATING VALVE |
SIEMENS SKP 75 |
| SAFETY VALVE |
SIEMENS SKP 15 |
| GAS LEAKAGE CONTROL |
DUNGS GW 150 A5 / DUNGS VPS 504 |
