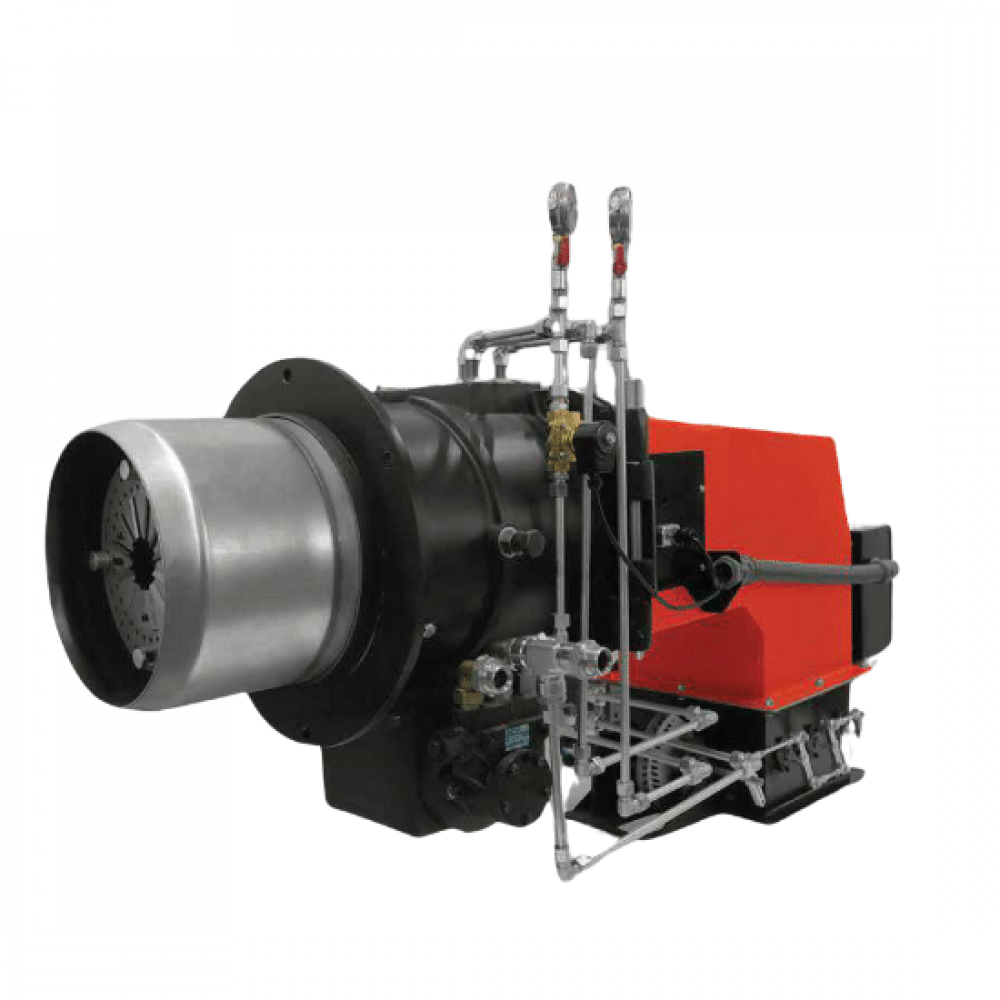

CCM 500 Modulated type burners have a modulated operating system. They adjust the amount of air and fuel depending on the boiler temperature or pressure. It is ideal for industrial facilities where sensitive and constant heat/pressure is required. Production and controls are done according to EN 267.
For delivery schedule and order, please contact our sales supervisor via our e-mail address
info@gokceburner.com.
| BURNER TYPE |
CCM 500 |
| RELAY |
SIEMENS LAL 1.25 |
| FLAME CONTROL |
SIEMENS QRB 4 |
| SERVOMOTOR |
SIEMENS SQM 40.261A20 |
| TRANSFORMER |
SEK 2x5000 V |
| HEATER |
24000 Watt |
| HEATER CONTROLLER |
EMKO MXL 30 |
| PILOT VALVE |
DUNGS MVD 505 |
| FUEL PUMP |
HP/SUNTEC |
| OIL VALVE |
TORK 3/8” NK-NA /
DURAVİS 3/8” NK-NA |
| OIL PRESSURE REGULATOR |
HP B-G PRO 2 / ITAL PUMP ITRP 3/8 |
| BURNER LANCE |
GÖKÇE |
|
