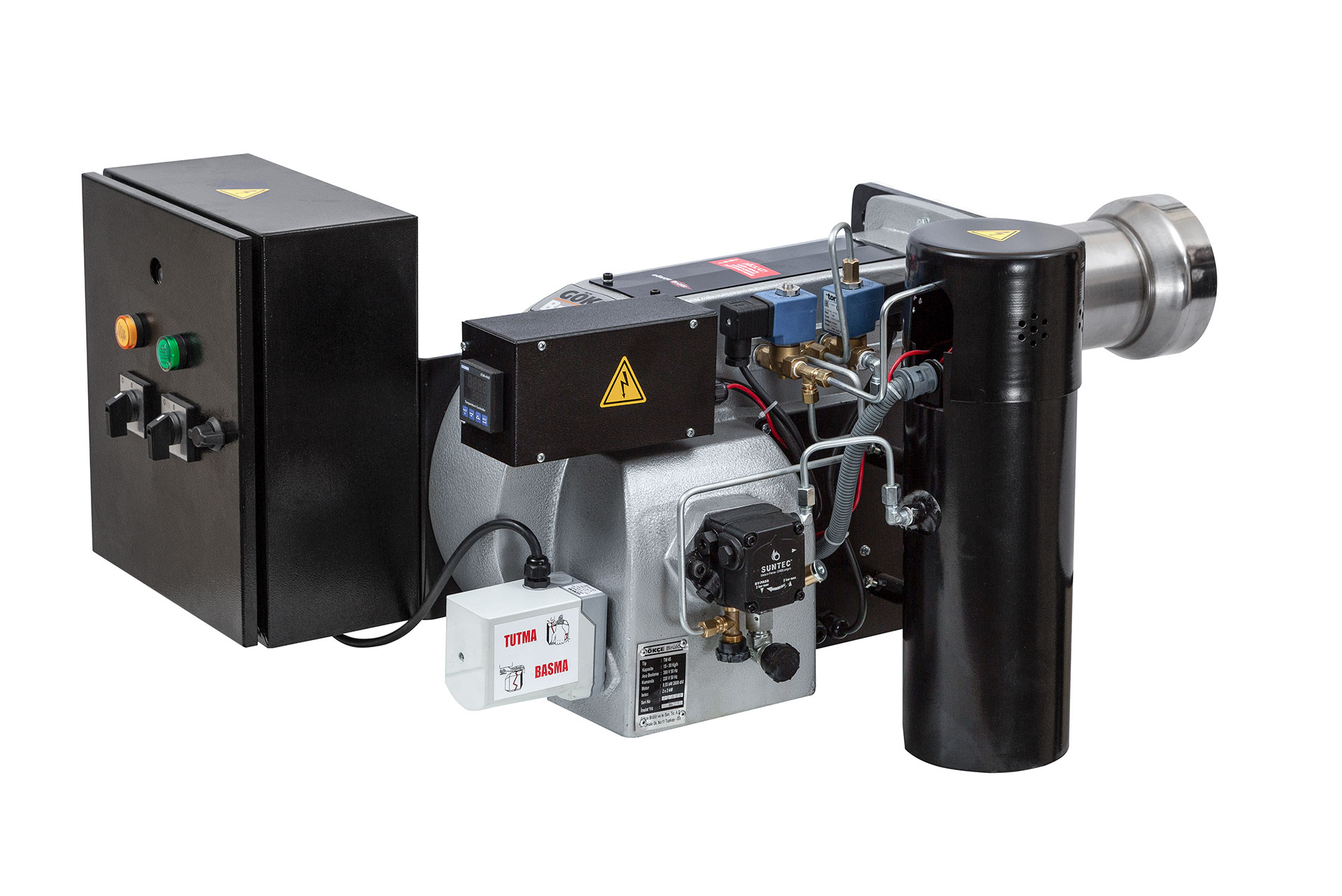

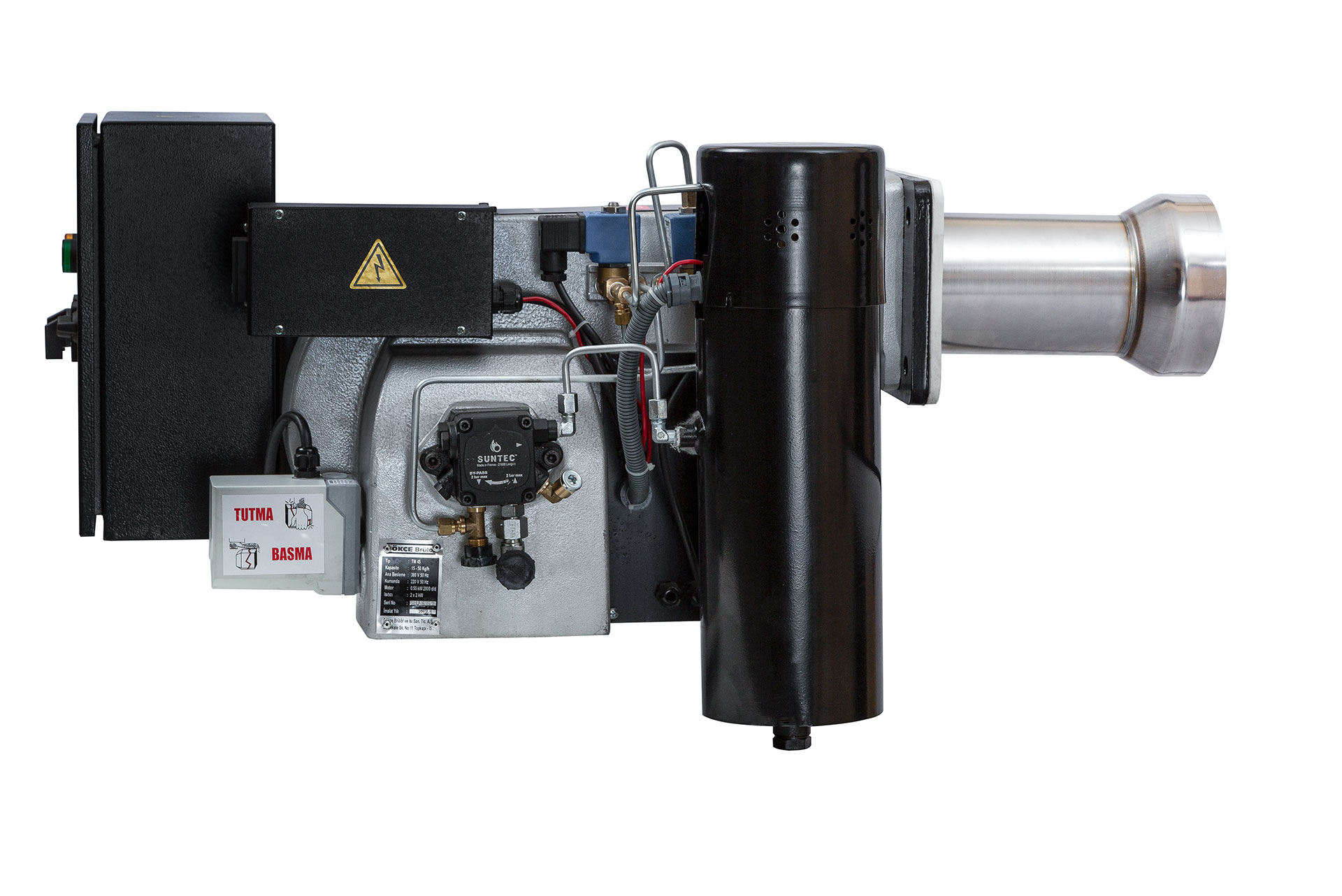

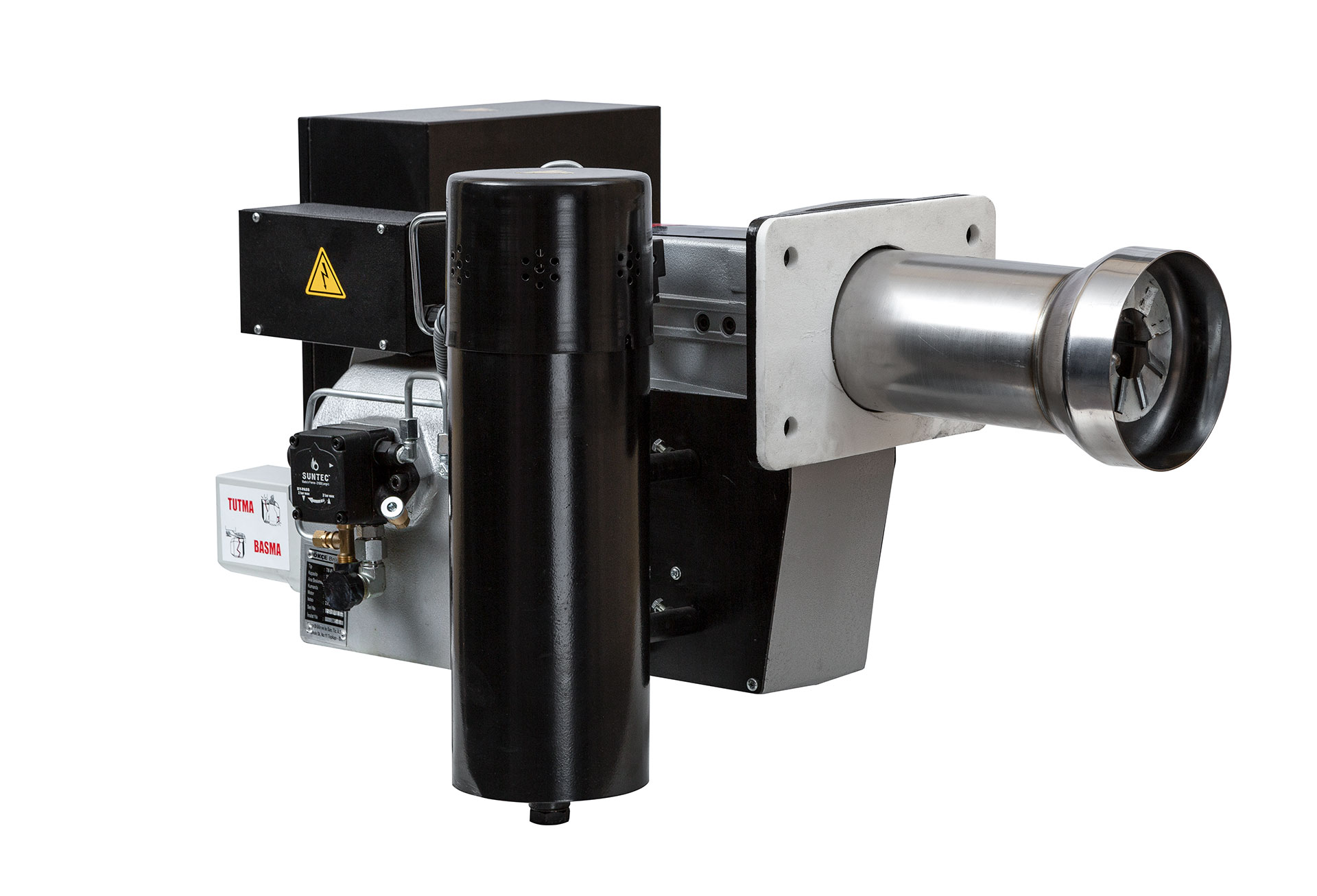

Two Stage Fuel Oi̇l Burner TM 45 15-50 Kg/h

Two Stage Fuel Oi̇l Burner TM 45 15-50 Kg/h

PRODUCT CODE	122.045
MIN \| MAX KG/H	15 kg/H \| 50 kg/H
WORKING	Two Staged
COMBUSTION	Fuel Oi̇l

ТМ 45 Two Stage burners with two magnet valves and servomotors provide of two-stage combustion and wide range of adjustment by changing the spray nozzle.

For delivery schedule and order, please contact our sales supervisor via our e-mail address info@gokceburner.com.

BURNER TYPE	TM 45
ELECTRIC MOTOR	0.55 kW, 2800 d/d TRİFAZE
CONTROL UNIT	SIEMENS LMO 24
PHOTOCELL	SIEMENS QRB 1
TRANSFORMER	2 X 5000 V23 mA
HEATER	4000 Watt
SERVOMOTOR	SIEMENS SQN 71.244
SOLENOID VALVE	LUCIFER 131K64, PARKER 140 İR 1/8" /TORK
THERMOSTAT	ESM 4420 / THERMOWATT
PUMP	SUNTEC D67C
