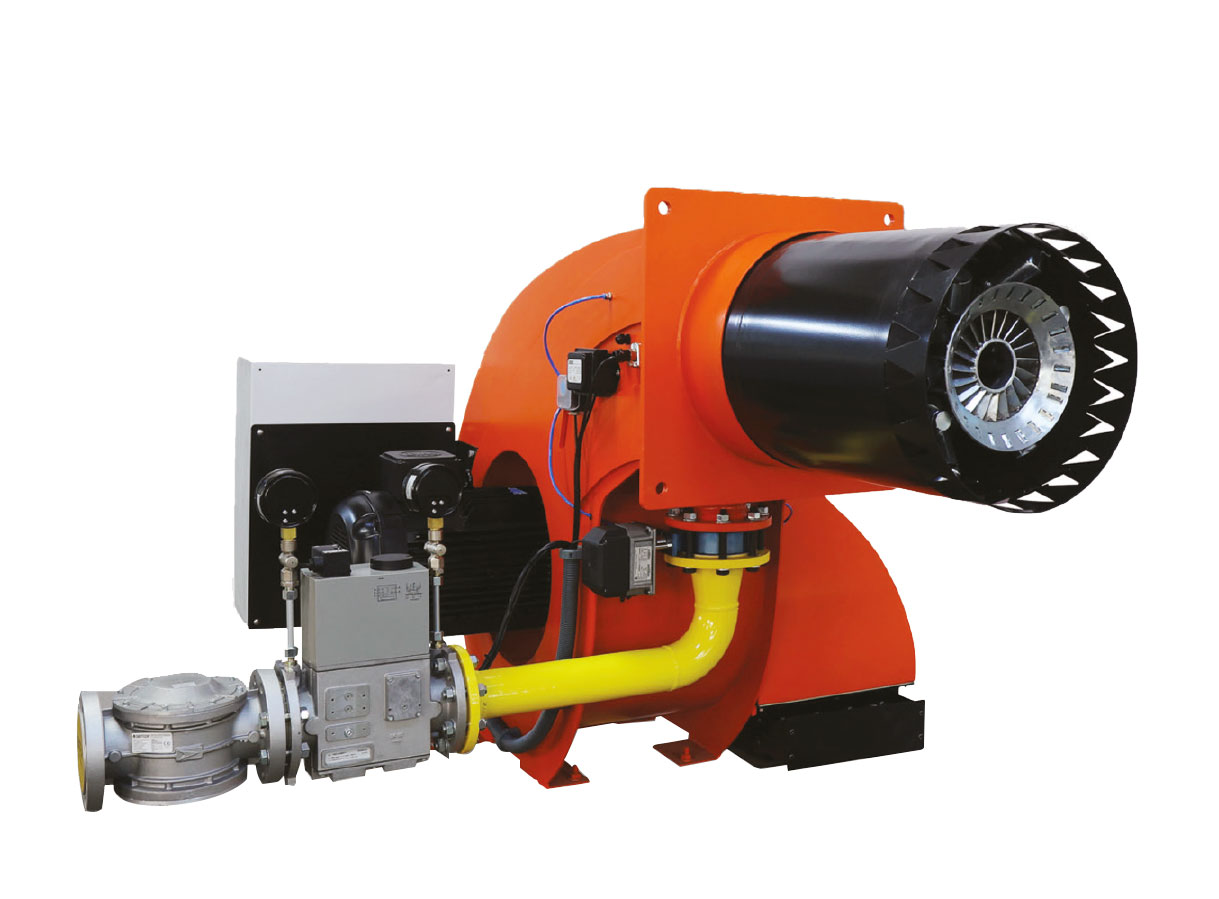

TG(L) 803 AGP Modulated Fully automatic, pressurized, dual fuel, step-by-step burners. It is capable of burning gas and alternative diesel or fuel oil fuel and it is possible to switch from one fuel to another in a very short time. Gökçe natural gas/liquid fuel burners are manufactured according to EN 676 and EN 267 standards and equipped with safety systems.
For delivery schedule and order, please contact our sales supervisor via our e-mail address
info@gokceburner.com.
| BURNER TYPE |
TG(L) 803 AGP |
| RELAY |
LAMTEC BT 340 |
| FLAME DETECTOR |
SIEMENS QRA 2 |
| AIR PRESOSTAT |
DUNGS LGW 3A2 |
| TRANSFORMER |
SEK. 2 x 5000 V, 23 mA |
| SERVOMOTOR |
LAMTEC (AIR 9NM - FUEL 3NM) |
| GAS LEAKAGE CONTROL |
DUNGS GW 150 A5 |
| GAS PRESOSTAT (min) |
DUNGS GW 500 A6 |
| GAS PRESOSTAT (max) |
DUNGS GW 150 A6 |
| GAZ VANASI |
SIEMENS VGD 40.080 / DUNGS MBE VB-080 |
| WORKING VALVE |
SIEMENS SKP 25 / DUNGS VD-R-AC |
| SAFETY VALVE |
SIEMENS SKP 15 / DUNGS VD-V-AC |
| FILTER GAS |
DN80 |
| PUMP |
HP / SUNTEC |
| OIL PRESSURE REGULATOR |
ITAL PUMP ITRE (1/2") |
| PILOT VALVE |
DUNGS MVD 507 |
| HEATER |
- |
| HEATER THERMOSTAT |
- |
